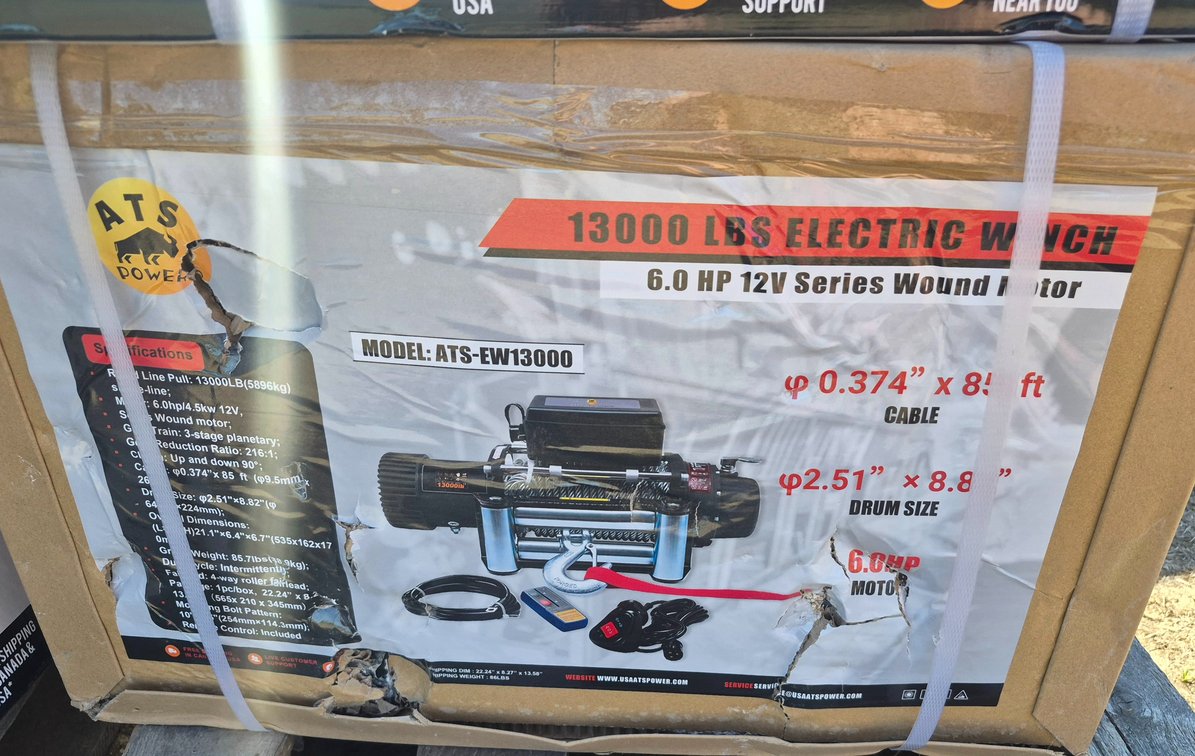

#211 • Electric winch

Part of Fall Equipment Auction in Monett, MO (timed auction by HEA Sales)

High bid $110.00

Status: Available

Bidding closes Nov 5, 2026 8:00 PM CST

Key Specifications Rated Line Pull: 13,000 lbs (5,896 kg) single-line capacity Motor: 6.0 HP (4.5 kW) 12V Series Wound motor Gear Train: 3-stage planetary system Gear Reduction Ratio: 216:1 Clutch: 90° up-and-down sliding ring gear for free-spooling Cable Dimensions: 0.374 in diameter x 85 ft long (9.5mm x 26m) Drum Size: φ2.51 in x 8.82 in (φ64mm x 224mm) Mounting Bolt Pattern: Standard 10" x 4.5" Overall Dimensions: 21.1" L x 6.4" W x 6.7" H Total Weight: Approximately 85.7 lbs (38.9 kg)
