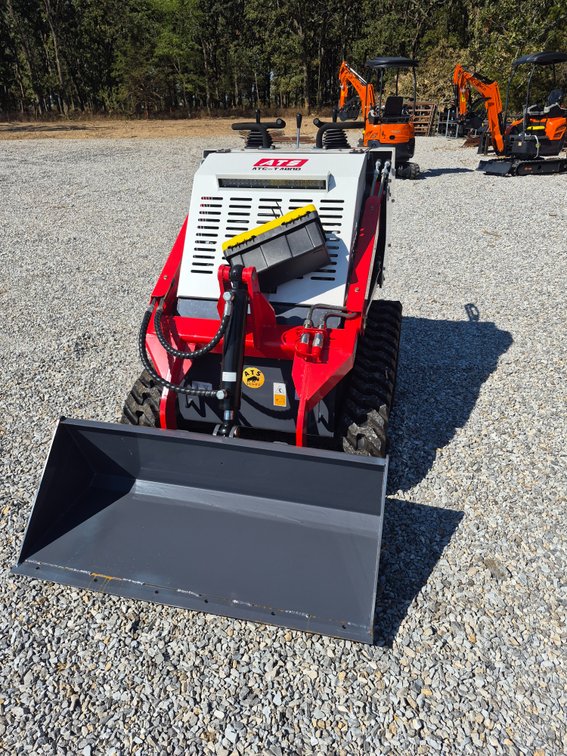

#168 • 25 hp Mini Skid Steer Loader(smooth Bucket included)

Part of Fall Equipment Auction in Monett, MO (timed auction by HEA Sales)

High bid $2,300.00

Status: Available

Bidding closes Nov 5, 2026 6:35 PM CST

The T480R Dual Pump Mini Skid Steer is a compact, high-performance multifunctional loader tailored for light construction, landscaping, farm maintenance and narrow-site operation. Featuring a streamlined body dimension of 93×41×53 in and flexible walking performance, this machine adapts perfectly to confined working spaces where large equipment cannot access, delivering outstanding maneuverability and site adaptability.Powered by the reliable RATO760 engine, it delivers a stable 20.5 KW power output at 3600 rpm, supporting long-duration continuous operation. With a maximum lifting capacity of 838 Ibs, a 67-inch maximum pin height and 57-inch dump height, paired with a 90° bucket dump angle, it realizes thorough and efficient material loading and unloading, greatly boosting construction efficiency.Equipped with a professional 8+8 gear dual pump hydraulic system and 3+2 multi-way valve, matched with a BMER-305 traveling hydraulic motor, the machine provides a maximum pump flow rate of 28.8 L/min. The 24 L hydraulic oil capacity and 18 L gasoline tank ensure stable hydraulic operation and lasting endurance. Adopting mechanical tensioning structure, the whole machine runs steadily at a walking speed of 4.7 km/h with low failure rate and easy maintenance. Lightweight and high-efficiency, the T480R is an ideal cost-effective equipment for various small engineering projects. Specifications ·Operating weight of the completemachine: 2755.8 Ibs ·Walking speed: 4.7 km/h ·Maximumlifing capacity: 838 Ibs ·MaximumPin Height: 67 in ·Maximum Dump Height: 57 in ·Bucket dump angle: 90 ·Wheelbase H: 28.7 in ·Engine model: RATO760 ·Displacement: 764 CC ·Oilvolume: 1.6 L ·Power: 20.5 KW/3600 rpm ·Hydraulic oil capacity: 24 L ·Gasoline tank capacity: 18 L ·Main pump type/model: gear pump/8+8 ·Maximumflowrateofmainpump: 28.8 L/min ·Multi-wayvalve: 3+2 ·Travelinghydraulicmotor: BMER-305 ·Tensioning form: mechanical ·Overalldimensions: 93x41x53 in
